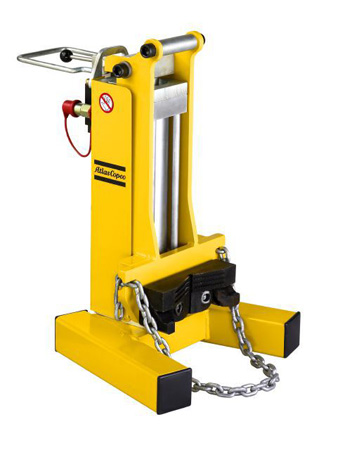

LPP 10HD Post Puller
The post puller is used by road-maintenance contractors to repair barriers. With hardened jaws and automatic chain tightening clamp, the Atlas Copco post puller is ideal for removing all kinds of wooden or steel posts including IPE, HPE, and UPE profiles, plus round/square steel tubes. Pulling force up to 6 tonnes with an optional hand lever giving a total pulling force of up to 10 tonnes.
Features:
- Integrated jaw
- Automatic chain tightening clamp
- Total pulling force up to 10 tonnes
- For removing:
- Wooden posts
- Steel posts (incl IPE, HPE and UPE profile)
- Round/square steel tubes
- Fence posts
- Anchors
Applications:
- For removal of any pole, steel beam or tube with diameters up to 200mm (8 in).
SPECIFICATIONS
| AC-1801810003 | $3,535.00
|
|
| Weight, incl. hoses and chain | lbs | 60 |
| Oil Flow | gpm | 5-10 |
| Working Pressure | psi | 1450-2321 |
| Maximum Back Pressure | psi | 435 |
| Lift Capacity per Stroke | in | .4-7.8 |
| Pulling Force | lbs | 13228 |
| Full Pulling Force | lbs | 22046 |
| EHTMA Class | C/D/E |
DOCUMENTATION
| Spare Parts List |
| Safety and Operating Instructions |
| Hydraulic Power Pac Information |
| Can I run this tool on my power source? |
ACCESSORIES
| 1801163319 | OFD 5 Oil Flow Divider | $1,202.66
|
3371810140 | Extension Pipe for Soft Soils | QUOTE |
|
| AC-1801164232 | OFD 30 Oil Flow Divider | $1,519.61
|

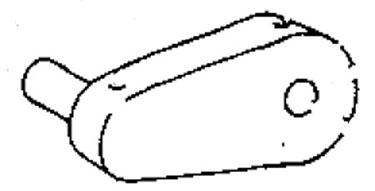

3371810141 | Lever (0.8m) | $616.06
|
|
| AC-3371801087 | Twin Extension Hose - 23' | $1,033.09
|
3371810142 | Pipe (1m) | $113.04
|
|
| AC-3371801089 | Twin Extension Hose - 39' | $1,307.98
|
3371810133 | Prism | $762.43
|
|
| 3371810148 | Post Puller Lever Kit | $1,122.68
|
