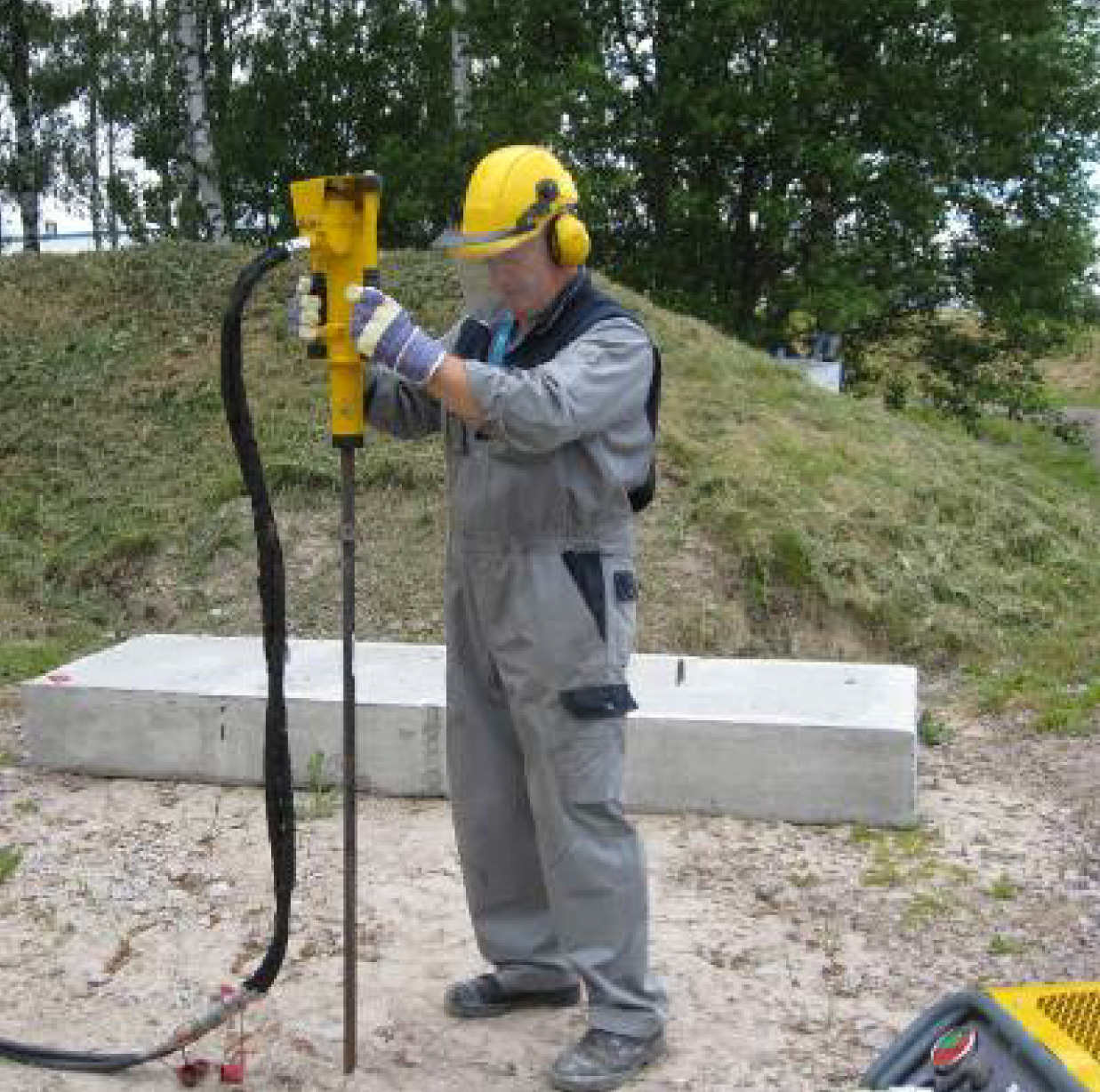

LPD-HD-T & RV Heavy Duty Post Driver
Used for driving road barrier tubes, profiles, sign posts, fences and a wide range of anchors. The post drivers provide stable, powerful, high speed driving for a variety of post sizes. When operated with an option hose-mounted remote-controlled valve, the drivers can be run with both open- or closed-center systems.
Features:
- Built-in on/off valve for short pole driving
- Drives up to 96mm diameter poles
- For driving:
- Road barriers
- Tubes/Profiles
- Signposts
- Fences
- Anchors
*To ensure that the tool is receiving the correct flow of 8 gpm, you will need OFD30 Oil Flow Divider. Max flow in: 32 gpm; Max pressure: 3600 psi. No warranty for tools damaged by over-pressure when run without an oil flow divider.
** For John Deere and Bobcat skidsteers that deliver between 16 and 30 gpm, pressure reduction hoses must be used in conjunction with the OFD.
SPECIFICATIONS
| Description | LPT-HD-T | LPD-HD-RV | |
| Activation Type | Trigger Lever | Remote Valve | |
| Hydraulic System | Open Center | Open/Closed Center | |
| Weight, incl. hoses | lbs | 86 | 88 |
| Service Weight, with Square Adapter | lbs | 86 | 88 |
| Oil Flow | gpm | 7.4-10.57 | 7.4-10.57 |
| Working Pressure | psi | 1523-1813 | 1523-1813 |
| Impact Rate at 30 l/min | bpm | 1320 | 1320 |
| Piston/Rod Diameter | in | 2.76-5.91 | 2.76-5.91 |
| Vibration Level 3 Axes (ISO 28927-10)*, 20 lpm | m/s² | 20.1 | n/a |
| Sound Power level Guaranteed, Lw (2000/14/ED) | dB(A) | 118 | 118 |
| Sound Pressure Level (ISO 11203)* Lp, r=1lm | dB(A) | 105 | 105 |
| EHTMA Class | D/E | D/E | |
| Part No | AC-1801414000 | AC-1801415000 | |
$3,535.00
|
$3,535.00
|
DOCUMENTATION
| Spare Parts List |
| Safety & Operating Instructions |
| Hydraulic Power Packs |
| Can I run this tool with my power source? |
ACCESSORIES & COMMON REPLACEABLE PARTS
| OFD 5 Oil Flow Divider | 1801163319 | $1,202.66
|
||||
| OFD30 Oil Flow Divider | AC-1801164232 | $1,519.61
|
||||
| Solid Round Adaptor for 4.15-4.5" Tubes | 3371806054 | $624.73
|
Twin Extension Hose - 23' | AC-3371801087 | $1,033.09
|
|
| Solid Round Adaptor for 6" Poles | 3371806055 | $889.02
|
Twin Extension Hose | AC-3371801089 | $1,307.98
|
|
| Rectangular Guide Adaptors for IPE/Sigma/C 100mm Beams | 3371806045 | $720.43
|
Accumulator Kit | 3371821024 | $386.81
|
|
| Rectangular Guide Adaptors for IPE/C 120mm Beams | 3371806046 | $880.91
|
Accumulator Repair Kit | 3310101845 | $133.62
|
|
| Round Guide Adaptors for 2.5" Tubes and Poles | 3371806047 | $1,020.42
|
Trigger Valve Kit | 3371820053 | $544.20
|
|
| Round Guide Adaptors for 3.0" Tubes and Poles | 3371806048 | $1,218.16
|
Complete Connection Hose | 3371801083 | $238.59
|
|
| Round Guide Adaptors for 3.5" Tubes and Poles | 3371806049 | $790.83
|
Seal Kit | 3371820087 | $161.99
|
|
| Round Guide Adaptors for 4.0" Tubes and Poles | 3371806050 | $1,225.63
|
Label Kit | 3371821259 | CALL | |
| Filling Device Kit | 3371801155 | $4,167.33
|
