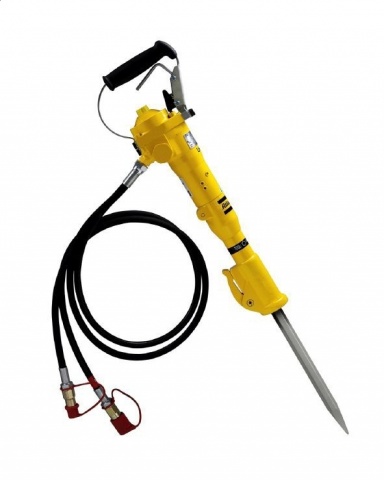

LH 11 Pick Hammer
This D-handle hammer is ideal for horizontal work in brick, mortar and light concrete. It is one of the most powerful pick hammers on the market. With its detachable front handle, the LH 11 is a popular choice for renovation, demolition and structural alteration jobs
Features:
- Low noise levels
- Slim design
- High power to weight ratio
Applications:
- Breaking light concrete and brickwork
** FREE SHIPPING within the Continental United States
SPECIFICATIONS
| AC-1801174118 | $2,025.00
|
|
| Shank Size | in | 7⁄8 x 3-1⁄4 |
| Weight, incl. hoses | lbs | 34 |
| Length | in | 26 |
| Oil Flow, Maximum | gpm | 5.3 |
| Working Pressure | psi | 1160-1450 |
| Maximum Back Pressure | psi | 145 |
| Impact Rate at 30 l/min | bpm | 2300 |
| Vibration Level 3 Axes (ISO 28927-10)* | m/s2 | 16.5 |
| Sound Power Level Guarangeed, Lw (2000/14/EC)* | dB(A) | 105 |
| Sound Pressure Level (ISO 11203)* Lp, r=1m | dB(A) | 93 |
| EHTMA Class | C |
CONSUMABLES
| Paving Breaker tools |
DOCUMENTATION
| Spare Parts List |
| Safety and Operating Instructions |
| Hydraulic Power Pac Information |
ACCESSORIES & COMMON REPLACEABLE PARTS
| Label Kit | 3371821094 | $82.32
|
OFD 5 Oil Flow Divider | 1801163319 | $1,202.66
|
|
| Seal Kit | 3371814057 | $119.22
|
OFD 30 Oil Flow Divider | AC-1801164232 | $1,519.61
|
|
| Trigger Valve Kit | 3371814058 | $262.49
|
Twin Extension Hose - 23' | AC-3371801087 | $1,033.09
|
|
| Accumulator Kit | 3371814068 | $397.66
|
Twin Extension Hose - 39' | AC-3371801089 | $1,307.98
|
|
| Filling Device Kit | 3371801155 | $4,167.33
|
Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | PB-RD-VDEX-KIT | $1,545.00
|
|
| Complete Connection Hose | 3371801083 | $238.59
|
Dust Control Spray Kit | 9753300015 | $146.87
|
