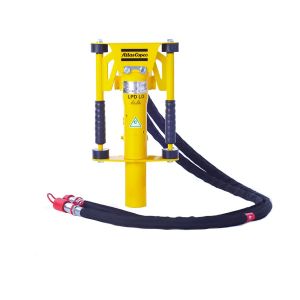

LPD-LD Ground Rod Driver
Features:
- Using standard 16 or 25mm bushings will turn the LPD-LD into a perfect ground rod driver
- PTFE type guide bushings reduce damage on the zinc or copper surface on ground rods
- High frequency driving for less damange on top of rod, assuring better connection of next rod
- The integrated anvil hits directly on top of ground rod or anchor
- Press-down handle for easy start/driving
- Light weight - easy to lift and operate
*To ensure that the tool is receiving the correct flow of 8 gpm, you will need OFD 30 Oil flow divider part #1801 1642 32 Oil flow Divider (Max flow in: 32 gpm; max. pressure: 3,600 psi). No warrantee for tools damaged by over pressure when run without an oil flow divider.
**For John Deere and Bobcat skidsteer that deliver between 16 and 30GPM. Pressure Reduction Hoses must be used in conjunction with the OFD.
SPECIFICATIONS
| AC-1801394006 | $2,365.00
|
|
| Activation Type | By Handle Bar | |
| Weight, incl. hoses | lbs | 39 |
| Service Weight, with adapter | lbs | 70 |
| Length | in | 19 |
| Oil Flow | gpm | 5 |
| Working Pressure | psi | 1160-1450 |
| Max Pressure Relief Valve Setting | psi | 2500 |
| Max Back Pressure | psi | 150 |
| Impact Rate | bpm | 2300 |
| Vibration Level 3 Axes (ISO 28927-10) | m/s² | 17.5 |
| Sound Power Level Guarangeed, Lw (2000/14/EC)* | dB(A) | 116 |
| Sound Pressure Level (ISO 11203)* Lp, r=1m | dB(A) | 102 |
| EHTMA Class | C |
DOCUMENTATION
| Spare Parts List |
| Safety and Operating Instructions |
ACCESSORIES & COMMON REPLACEABLE PARTS
| 3371806056 | Ground Rod Adaptor Kit - 16mm - 5/8" | $417.10
|
| 3371806057 | Ground Rod Adaptor Kit - 25mm - 1" | $115.26
|
| 3371806058 | Guide Adaptor Kit - 62mm - 2 1/2" Tubes | $458.41
|
| 1801163319 | OFD 5 Oil Flow Divider | $1,202.66
|
| AC-1801164232 | OFD 30 Oil Flow Divider | $1,519.61
|
| AC-3371801087 | Twin Extension Hose - 23' | $1,033.09
|
| AC-3371801089 | Twin Extension Hose - 39' | $1,307.98
|
| 3371814057 | Seal Kit | $119.22
|
