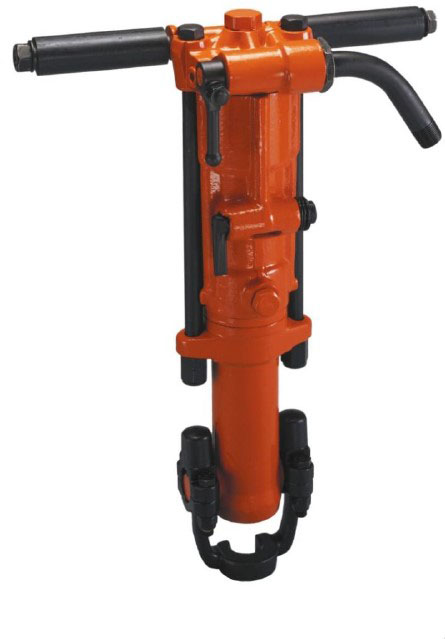

APT 155 Pneumatic Rock Drill - 7/8 x 4-1/4
The APT Model 155 Rock Drill is a tough, 60 lb. class rock drill. This tool can be used in general construction as well as in utility work and plant maintenance. It is designed for drilling through granite, hard faced rock, quarry drilling, and drilling secondary holes for blasting. This tool can also be used with dowel hole drilling machines. Adaptable to wet drilling applications by attaching the APT valve, wet tube and swivel assembly
Features
- 3 drilling speeds
- Replaceable piston stem bearing
- Built-in automatic oiler
- Available wet or dry
- Counter clockwise rotation
- Rubber handle grips
FREE GROUND SHIPPING WITHIN THE CONTINENTAL UNITED STATES
Specifications
| 5231 | Dry | $2,290.00
|
| 5232 | Wet | $2,375.00
|
| Chuck Size | in | 7⁄8 x 4-1⁄4 |
| Bore | in | 2-5⁄8 |
| Stroke | in | 3 |
| Impact Rate | bpm | 2100 |
| Air Consumption | cfm | 110-120 |
| Weight | lbs | 61 |
| Length | in | 22-3⁄8 |
| Air Inlet | in | 3⁄4 Male NPT |
Consumables
Documentation
Accessories & Common Replaceable Parts
| 18442 | Retainer - 7⁄8 & 1 x 4-1⁄4 | $425.37
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
| 18756 | Muffler Kit | $404.51
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
| 18799 | Side Rod Kit | $123.84
|
Line Oiler | LO-10PF | $81.00
|
| 19058 | Whip Hose Assy (3⁄4" Hose) and Constant Feed Oiler | $234.49
|
Whip Check | WCSML | $11.00
|
| 18784 | O-Ring and Seal Kit | $53.84
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
| 9753300015 | Dust Control Spray Kit | $146.87
|
Dust Extraction Kit for Paving Breakers & Rock Drills (incl. TAM3P Pail & Vacuum Hose) | PB-RD-VDEX-KIT | $1,545.00
|
