APT 137 Pneumatic Rock Drill - 7/8 x 4-1/4
The APT Model 137 rock drill is a versatile midsize rock drill used in general construction, utility work, and plant maintenance. It is designed for drilling through granite, hard faced rock, quarry drilling and for drilling secondary holes for blasting. It can also be used in conjunction with dowel hole drilling machines. The model 137 is adaptable to wet drilling applications by attaching the APT valve, wet tube and swivel assembly.
Features
- 4 drilling speeds
- Replaceable piston bem bearing
- Available wet or dry
- Counter clockwise rotation
- Rubber handle grips
FREE GROUND SHIPPING WITHIN THE CONTINENTAL UNITED STATES
SPECIFICATIONS
| 5225 | Dry | $1,935.00
|
| 5226 | Wet | $2,040.00
|
| Chuck Size | in | 7⁄8 x 4-1⁄4 |
| Bore | in | 2-3⁄8 |
| Stroke | in | 2-5⁄8 |
| Impact Rate | bpm | 2300 |
| Air Consumption | cfm | 85-90 |
| Weight | lbs | 38 |
| Length | in | 19-3⁄4 |
| Air Inlet | in | 1⁄2 Male NPT |
Consumables
Documentation
Acccessories & Common Replacement Parts
| 2598 | Retainer - 7⁄8 & 1 x 4-1⁄4 | $358.02
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
| 18798 | Side Rod Kit | $66.69
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
| 18783 | O-Ring and Seal Kit | $126.75
|
Line Oiler | LO-10PF | $81.00
|

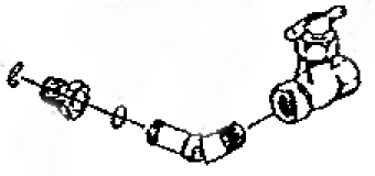

| 3389 | Swivel Assy for Wet Head | $139.35
|
Whip Check | WCSML | $11.00
|
| PB-RD-VDEX-KIT | Dust Extraction Kit for Paving Breakers & Rock Drills - Includes TAM3P Pail & Vacuum Hose and Paving Breaker/Rock Drill Attachment | $1,545.00
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
| 9753300015 | Dust Control Spray Kit | $146.87
|
Whip Hose Assy (3⁄4" Hose) and Constant Feed Oiler | 18748 | CALL |
