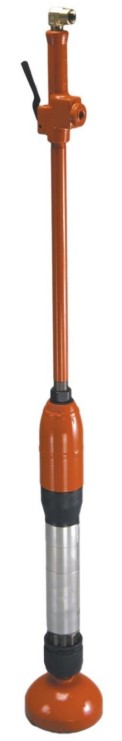

APT 131 Pneumatic Backfill Tamper
The Model 131 Backfill Tamper is used for soil compaction, temporary filling of holes, asphalt packing, etc. Applications range from foundation and pavement repair to the installation of power or telephone poles. APT Tampers come with a choice of 3 styles of butts, a 6" diameter (approx 7lbs), 3" round butt (approx 5lbs), and a pole butt (approx 5lbs). The half-moon shaped pole butt is for compaction around a pole and the 3" diameter butt for confined space compaction
Features:
- Built-in automatic oiler
- Flapper valve design allows dirt to pass without stopping the tool
- Internally reinforced large 5-3⁄4" malleable iron butt (standard)
Your choice of butt style:
- Internally reinforced malleable iron butt - 6" dia.
- Solid butt - 3" dia.
- Pole or Half-Moon butt
** FREE Ground shipping within Continental United States ***
SPECIFICATIONS
| 5214 | APT 131 Backfill Tamper with 6" Malleable Iron Butt | $1,165.00
|
| 5214-03 | APT 131 Backfill Tamper with 3" Solid Butt | $1,160.00
|
| 5214-04 | APT 131 Backfill Tamper with Pole (Half-Moon) Butt | $1,160.00
|
| Bore | in | 1-1⁄2 |
| Stroke | in | 5-1⁄2 |
| Impact Rate | bpm | 670 |
| Air Consumption | cfm | 38-42 |
| Weight | lbs | 37 |
| Length | in | 51-7⁄8 |
| Air Inlet | in | 1⁄2 Female NPT |
DOCUMENTATION
| Spare Parts List |
| Maintenance and Repair Information |
ACCESSORIES & COMMON REPLACEABLE PARTS
| 6" diameter Butt | 260 | $172.04
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
| 3" diameter Butt | 3566 | $172.04
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
| Half-Moon Butt (Pole) | 2655 | $172.04
|
Line Oil | LO-10PF | $81.00
|
| Hose Whip Assembly - 6' x 1⁄2" Hose with 1⁄2" NPT Male Swivel | 18833 | $75.64
|
Whip Check | WCSML | $11.00
|
| Hose Whip Assembly - 6' x 1⁄2" Hose with 1⁄2" NPT Male Swivel and 2L Line Oiler | 18838 | $179.26
|
Contrators Air Hose - 50' | AIRH-19-50R | $124.00
|
| O-Ring and Seal Kit | 18791 | $38.89
|
Air King Universal Coupler | AM8 | $12.00
|
