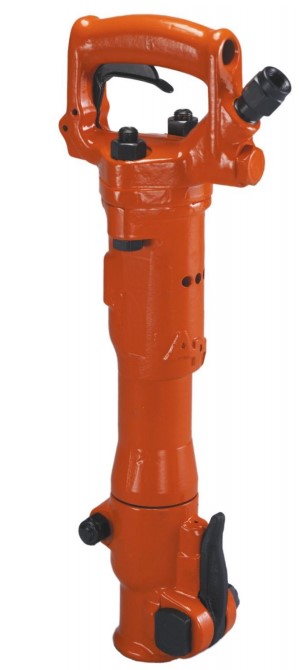

The APT Model 125 Clay Digger is a lighter weight tool ideal for digging clay, shale, hard pan and frozen ground.  This tool is a lighter weight tool for digging medium to lightly packed soil, for light demolition work as well as for tunneling around existing foundations.  With its latch type retainer, lighter weight and short length, this tool is one of the best and easiest to handle clay diggers made today.

Features

• Flapper valve design allows dirt to pass through without stopping tool
• Drop forged, D-style steel handle
• Replaceable chuck and piston stem bushing
• Latch type retainer
• Deep, case hardened forged alloy steel cylinder
• Inside trigger for better control and safety

** FREE GROUND SHIPPING WITHIN THE CONTINENTAL UNITED STATES

SPECIFICATIONS

5211		$1,210.00
Chuck Size	in	7⁄8 x 3-1⁄4
Bore	in	1-11⁄16
Stroke	in	2-3⁄4
Impact Rate	bpm	2120
Air Consumption	cfm	38-42
Weight	lbs	31
Length	in	18-3⁄8
Air Inlet	in	1⁄2 Female NPT

CONSUMABLES

DOCUMENTATION

ACCESSORIES & COMMON REPLACEABLE PARTS

Latch Kit - incl. latch retainer, bolt, bushing, spring, nut, plunger and washer	18295	$124.90	Rock Drill Oil - 1 Gal	RDO1G	$42.00
Hose Whip Assembly - 6' x 1⁄2" Hose with 1⁄2" NPT Swivel and 1L Line Oiler	18836	$155.88	Rock Drill Oil - 5 Gal	RDO5G	$122.00
Hose Whip Assembly - 6' x 1⁄2" Hose with 1⁄2" NPT Swivel	18833	$75.64	Line Oiler	LO-10PF	$81.00
O-Ring, Seal and Repair Kit	18790	$14.63	Whip Check	WCSML	$11.00
Dust Control Spray Kit	9753300015	$146.87	Contractors Air Hose - 50'	AIRH-19-50R	$124.00
Dust Extraction Kit for Paving Breakers & Rock Drills	PB-RD-VDEX-KIT	$1,545.00	Air King Universal Coupler	AM8	$12.00
