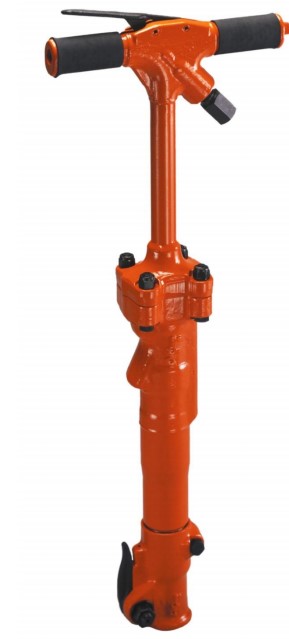

The APT Model 119 Trench Digger is used for digging clay, shale, hard pan and frozen ground.  The Model 119 is the perfect tool for digging trenches to lay pipes, phone lines and for foundation work.  The only difference between the 118 and 119 tools are the handles.  These tools have the same cylinders and the majority of the internal parts in common, which makes them very versatile tools for use in various types of work.

Features:

• Standard valve
• Built-in automatic oiler
• Drop forged, steel, T-style handle
• Replaceable chuck bushing
• Latch type retainer
• Deep, case hardened forged alloy steel cylinder
• Rubber handle grips
• Four-bolt back head
• Noise reducing muffler available

** FREE GROUND SHIPPING WITHIN THE CONTINENTAL UNITED STATES

SPECIFICATIONS

5204		$1,375.00
Chuck Size	in	1 x 4-1⁄4
Bore	in	1-3⁄4
Stroke	in	3-3⁄8
Impact Rate	bpm	1850
Air Consumption	cfm	34-38
Weight	lbs	37
Length	in	31
Air Inlet	in	1⁄2 Female NPT

CONSUMABLES

DOCUMENTATION

ACCESSORIES & COMMON REPLACEABLE PARTS

Muffler Kit	6465	$146.81	Rock Drill Oil - 1 Gal	RDO1G	$42.00
Latch Kit - incl. latch retainer, bolt, bushing, spring, nut, plunger and washer	18295	$124.90	Rock Drill Oil - 5 Gal	RDO5G	$122.00
Ball Valve Assy	18766	$237.54
Hose Whip Assembly - 6' x 1⁄2" Hose with 1⁄2" NPT Female and 1L Line Oiler	16893	CALL	Line Oiler	LO-10PF	$81.00
Hose Whip Assembly - 6' x 1⁄2" Hose with 1⁄2" NPT Male Fittings	18834	$77.92	Whip Check	WCSML	$11.00
O-Ring, Seal and Repair Kit	18788	$24.14	Contractors Air Hose - 50'	AIRH-19-50R	$124.00
Dust Control Spray Kit	9753300015	$146.87	Air King Universal Coupler	AM8	$12.00
Dust Extraction Kit for Paving Breakers & Rock Drills	PB-RD-VDEX-KIT	$1,545.00
