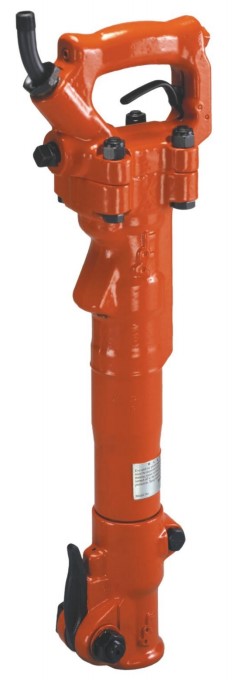

The APT Model 118 Clay Digger is used for digging clay, shale, hard pan and frozen ground.  The Model 118 is an ideal tool for clearing dirt under existing foundations and for tunneling under existing structures.  This medium weight tool can be used for horizontal work and for vertical work.  The only difference between the 118 and 119 tools are the handles.  These tools have the same cylinders and the majority of the internal parts in common, which makes them very versatile tools for use in various types of work.

Features

• Standard valve
• Built-in automatic oiler
• Drop forged, steel, D-style handle
• Replaceable chuck bushing
• Latch type retainer
• Deep, case hardened forged alloy steel cylinder
• Inside trigger for better control and safety
• Noise reducing muffler available

** FREE GROUND SHIPPING WITHIN THE CONTINENTAL UNITED STATES

SPECIFICATIONS

5201		$1,250.00
Chuck Size	in	7⁄8 x 3-1⁄4
Bore	in	1-3⁄4
Stroke	in	3-3⁄8
Impact Rate	bpm	1850
Air Consumption	cfm	34-36
Weight	lbs	31
Length	in	22-1⁄2
Air Inlet	in	3⁄8 Male NPT

CONSUMABLES

DOCUMENTATION

ACCESSORIES

Muffler Kit	6465	$146.81	Rock Drill Oil - 1 Gal	RDO1G	$42.00
Latch Kit - incl. latch retainer, bolt, bushing, spring, nut, plunger and washer	18295	$124.90	Rock Drill Oil - 5 Gal	RDO5G	$122.00
Ball Valve Assembly	18766	$237.54
Hose Whip Assembly - 6' x 1⁄2" Hose with 1⁄2" NPT Female and 1L Line Oiler	18842	$155.88	Line Oiler	LO-10PF	$81.00
Hose Whip Assembly - 6' x 1⁄2" Hose with 1⁄2" NPT Female	18840	$77.92	Whip Check	WCSML	$11.00
O-Ring, Seal and Repair Kit	18788	$24.14	Contractors Air Hose - 50'	AIRH-19-50R	$124.00
Dust Control Spray Kit	9753300015	$146.87	Air King Universal Coupler	AM8	$12.00
Dust Extraction Kit for Paving Breakers & Rock Drills	PB-RD-VDEX-KIT	$1,545.00
