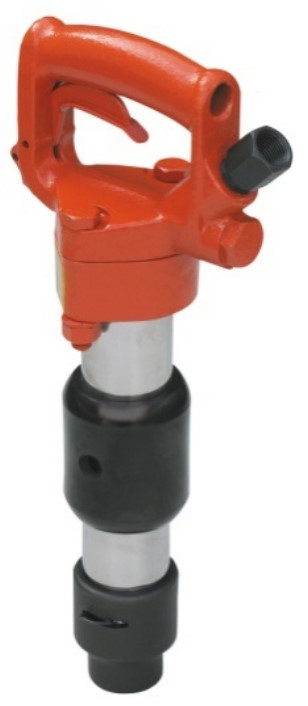

APT 264 Pneumatic Chipping Hammer With .680 Round Chuck and 3" Stroke
APT Chipping Hammers are used for scaling, chiseling, removing concrete build-up from the side of cement mixers, light concrete demolition and cement finishing, form stripping, etc.
Features
- Automatic ball valve design - more forgiving of dirt and debris, easier to maintain, made from corrosion resistant material
- Drop forged steel handle and collar
- Ball type throttle valve
- Replaceable nose bushing
- 2 bolt design for easier field maintenance
- Available in 3" and 4" strokes
- Adjustable exhaust deflector
- Tool comes standard with oval collar retainer and 6' hose whip assembly
- Optional quick change retainer systems available
Price includes: Oval Retainer, Lock Spring, 3⁄8" NPT Inlet Bushing, and WHIP HOSE ASSEMBLY - UF, 1⁄2" Hose x 6' with 7/8"-24 thread NPT Swivel
SPECIFICATIONS
| 18668-04 | 264 Chipping Hammer - Standard Oval Collar & Spring | $620.00
|
| 18668-02 | 264 Chipping Hammer - Ball-type & Spring | $710.00
|
| 18668-06 | 264 Chipping Hammer - Bolt-on Ball-Type | $730.00
|
| Bore | in | .680R |
| Stroke | in | 4 |
| Impact Rate | bpm | 1375 |
| Air Consumption | cfm | 34-36 |
| Weight | lbs | 15 |
| Length | in | 15-9⁄16 |
| Air Inlet | in | 7⁄8"-24 thread NPT |
CONSUMABLES
DOCUMENTATION
ACCESSORIES & COMMON REPLACEABLE PARTS
| Whip Hose Assembly with Oiler (1/2" NPT tool connection | 18836 | $155.88
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
| Whip Hose Assembly without Oiler (1/2" NPT tool connection) | 18833 | $75.64
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
| Whip Hose Assembly with Oiler (7/8"-24 tool connection) | 18835 | $155.88
|
Line Oiler | LO-10PF | $81.00
|
| Whip Hose Assembly without Oiler (7/8"-24 tool connection | 18832 | $75.18
|
Whip Check | WCSML | $11.00
|
| O-Ring and Seal Kit | 18786 | $13.11
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
| Bolt Replacement Kit | 18795 | $49.84
|
3/8" Bushing | 759 | CALL |
| Air Inlet Swivel with 1/2" Hose Barb (1/2" NPT tool connections) | 3486 | $39.90
|
Air Inlet Swivel with 1/2" Hose Barb (7/8"-24 tool connection) | 3388 | $37.97
|
| Air Inlet Swivel with 3/8" Male NPT (1/2" NPT tool connection) | 3389 | $139.35
|
Air Inlet Swivel with 3/8" Male NPT (7/8"-24 tool connection) | 2698 | $72.90
|
| Retainer Spring | 1941 | $6.22
|
Quick Change Retainer & Spring | 5550 | $82.33
|
| Retainer Spring - Bag of 25 | USPRG-CH-BAG | $60.00
|
Quick Change Retainer - Bolt-on Style | 18290 | $89.20
|

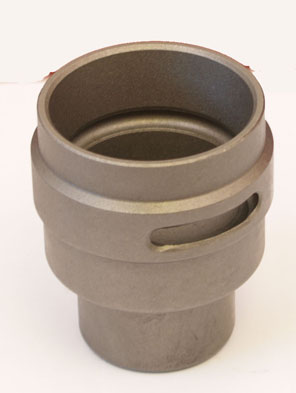

| Standard Retainer & Spring | 9431 | $35.68
|
Dust Control Spray Kit | 9753300015 | $146.87
|
| Dust Extraction Kit for Chipping Hammers | CH-VDEX-KIT | $1,371.43
|
