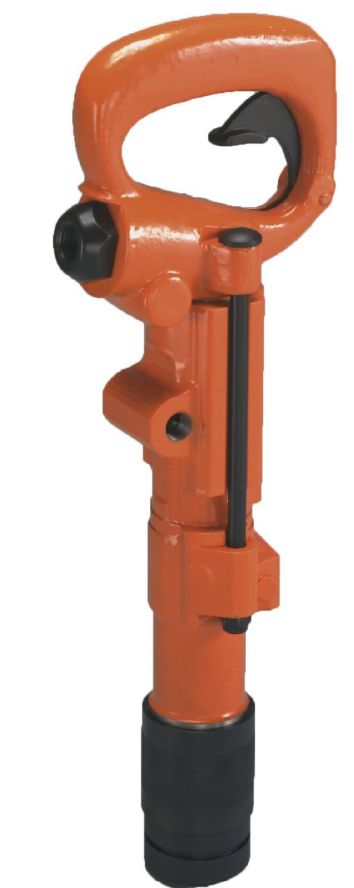

APT 109 Pneumatic Rock Drill
The APT Model 109 is a lightweight tool for drilling hole for anchor bolts and small dowel hole drilling. This versatile tool has a stop rotation feature that converts it from a drilling tool to a percussion tool for light chipping in horizontal and overhead work.
Features
- 9 lb. class
- Available with spline chuck
- Left-to-right hand rotation
- Stop-rotation feature
- Light-weight aluminum cast handle
- Rubber dust cover protest internal retainer parts
- Quick change ball-type retainer
** FREE Ground shipping within Continental United States
SPECIFICATIONS
| 17643 | $935.00
|
|
| Chuck Size | in | 3⁄4 x 3-3⁄4 |
| Bore | in | 1-1⁄4 |
| Stroke | in | 1 |
| Impact Rate | bpm | 3400 |
| Air Consumption | cfm | 19-21 |
| Weight | lbs | 9 |
| Length | in | 15 |
| Air Inlet | in | 3⁄8 Female NPT |
CONSUMABLES
| Whirlibits | ||
| CP-9 Chipping Hammer Chisel - 10" | CP9-NC-10 | $23.10
|
| CP-9 Chipping Hammer Moil Point - 10" | CP9-MP-10 | $23.10
|
| Electric Hammer Tools | ||
DOCUMENTATION
ACCESSORIES & COMMON REPLACEABLE PARTS
| 18096 | Spline Chuck | $285.21
|
RDO1G | Rock Drill Oil - 1 Gal | $42.00
|
| 17663 | Retainer | $182.09
|
RDO5G | Rock Drill Oil - 5 Gal | $122.00
|
| 18796 | Side Rod Kit | $43.70
|
18841 | Whip Hose Assy (1⁄2" x 6' Hose, 3⁄8" NPT Universal Male Fitting) and 1L Oiler | $155.88
|
| 18781 | O-Ring & Seal Kit | $72.07
|
18839 | Whip Hose Assy - 1⁄2" x 6' Hose, 3⁄8" NPT Universal Male Fitting - No line oiler | $77.92
|
| R137586 | CP9 to SDS+ Adaptor | $286.67
|
LO-10PF | Line Oiler | $81.00
|
| 9753300015 | Dust Control Spray Kit | $146.87
|
WCSML | Whip Check | $11.00
|
| RH-VDEX-KIT | Dust Extraction Kit - TAMP3P Vdex Bucket & Rock Drill Attachment | $1,330.00
|
AIRH-19-50R | Contractors Air Hose - 50' | $124.00
|
| 18747 | Swivel Assy | $59.09
|
